Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Teenwin
  • Model Number: TY-MBR-001
  • Product Name: Teenwin MBR wastewater treatment plant
  • Application: Sewage Treatment
  • Capacity: 24-5000 M3/d
  • Principle: Biochemical treatment+Membrane separation
  • Suitable for: school,hospital,animal farm etc.
  • Technical training: Yes
  • Success Rate: 100% guaranteed
  • Operating temperature: 5-45 ℃
  • System Maintenance: Easy and simple
  • Filtering material: PVDF etc.

Packaging & Delivery

Packaging Details Sewage Waste water Treatment Reinforced MBR /Immersed Type UF filter-MBR module packaged by Pallet
Delivery Time Shipped in 20 days after payment

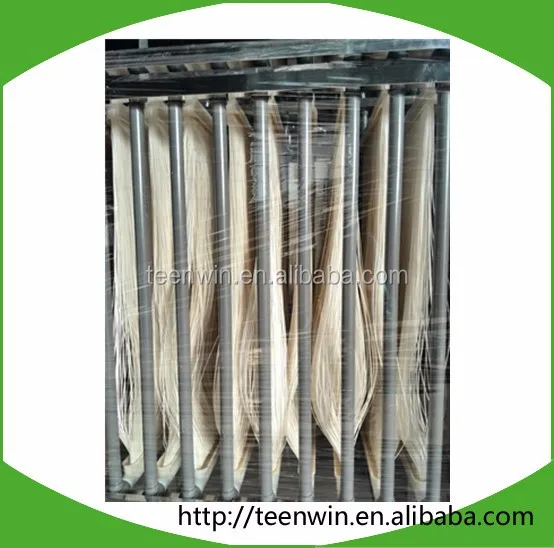

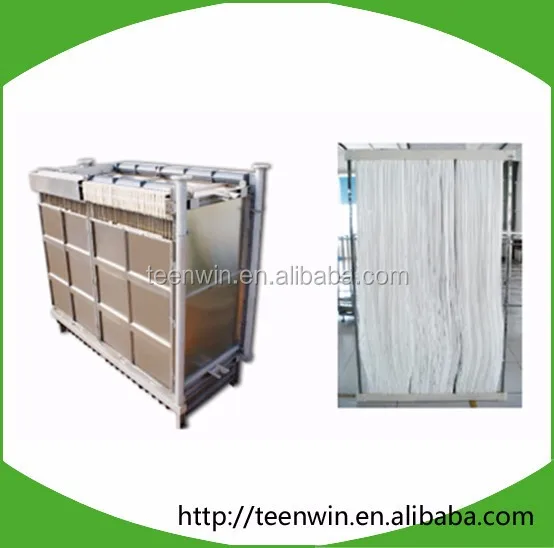

Teenwin Sewage Waste water Treatment Reinforced MBR /Immersed Type UF filter-MBR module
                                      Integrated Sewage Treatment Solutions Provider

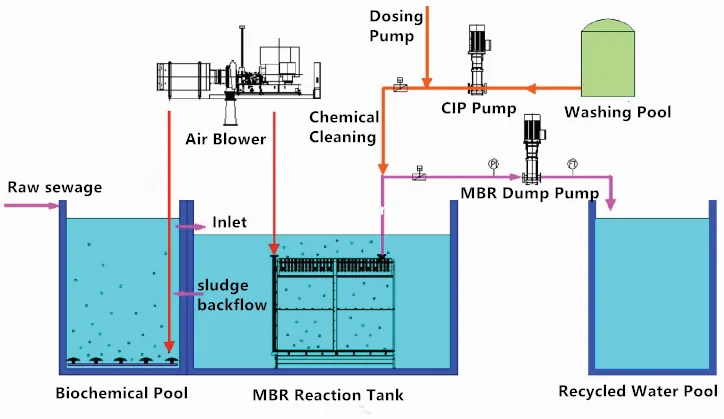

The flow chart of Teenwin Sewage Waste water Treatment Reinforced MBR /Immersed Type UF filter-MBR module


Description:
    Membrane bioreactor technology(MBR) is a relatively new reclaimed water wastewater reuse treatment technology,based on a combination of membrane separation and biodegradation,it uses membrane separation to keep large biosolids and useful microorganism inside the reaction tank,it allows achieving ,higher concentration of activated sludge ,improving solids retention,MBR is currently one of the most promising wastewater treatment technologies.

 Main advantages of Teenwin Sewage Waste water Treatment Reinforced MBR /Immersed Type UF filter-MBR module:
  1.Small footprint and less construction cost , the installation period is short.
  2. Running automatically and managment easy.
  3. Low energy consumption and maintenance cost.

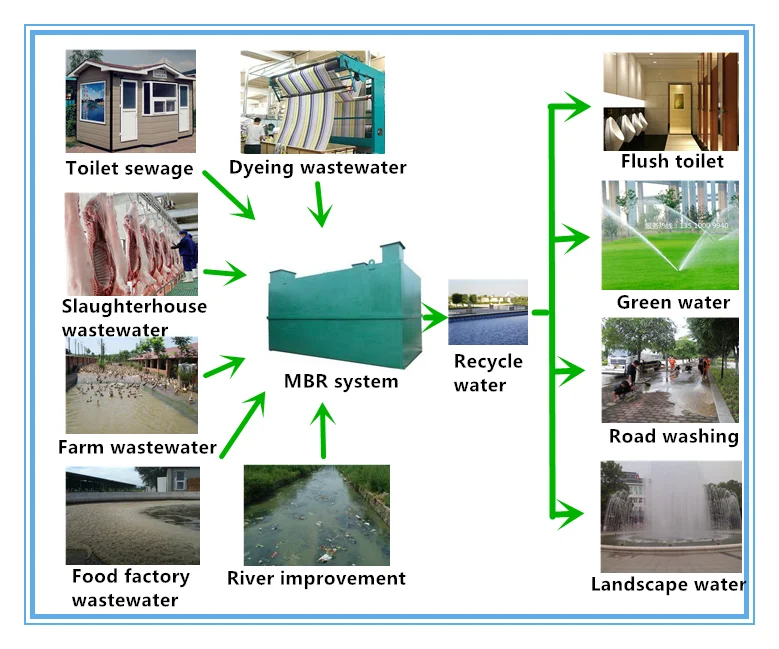

  4. High stability, it can fit many kinds of wastewater (sewage , food processing wastewater , farm       wastewater , the slaughterhouse wastewater ,  dyeing wastewater , etc ).
  5. Non-secondary-pollution cased during the whole treatment process
  6.The treated water can be reused (used to wash toilet , green water , wash the road , wash car , landscape water ,etc ) , save running water fee.


Specification

Module

TY-MBR-10

TY-MBR-15

TY-MBR-20

Width (W:mm)

535 535535

The length of the installation (H:mm)

1050 15502100

Membrane area (m2)

10 1520

The membrane flux (T/d)

3~6 4.5~66~9

Membrane material

PVDF/PP

Membrane shell material

ABS

Intercept aperture (um)

0.1-0.2

ID/OD of hollow fiber (mm)

0.9-2.1

Suction pressure (Mpa)

-0.01~-0.05 Mpa

Range of  PH

2-10 ,  Washing: 2-12

The proportion of air and water

15-25

Water production cycle

work 13min , stop 2min

Aeration rate (Nm3/m2*h)

90-150

Period of chemical cleaning

120-180 d

Reverse flushing pressure (Mpa)

<0.05

Working temperature

5-45ºC

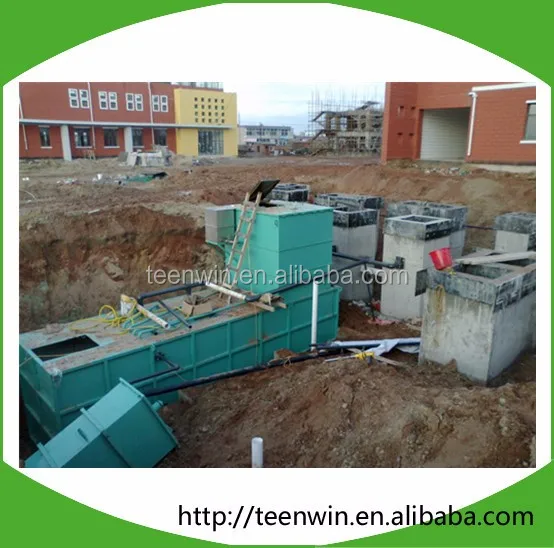

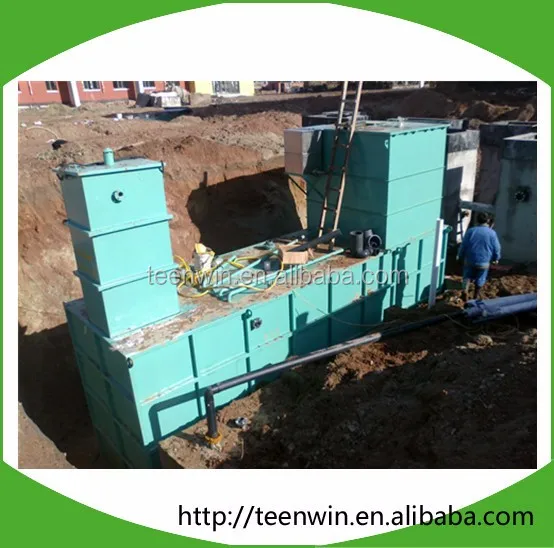

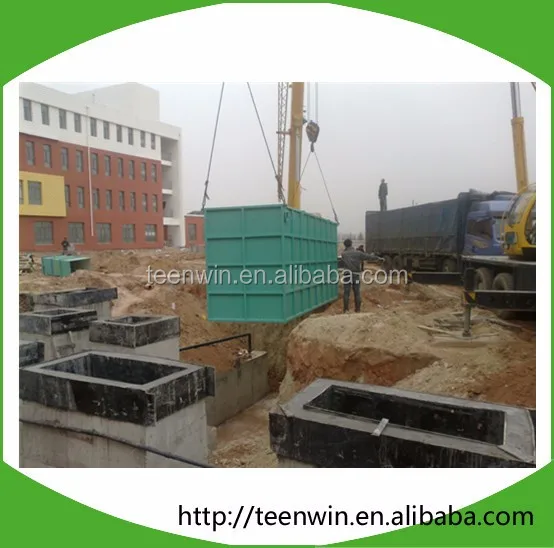

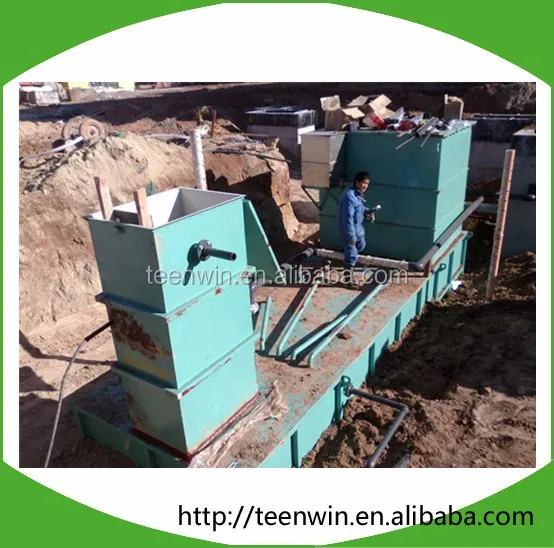

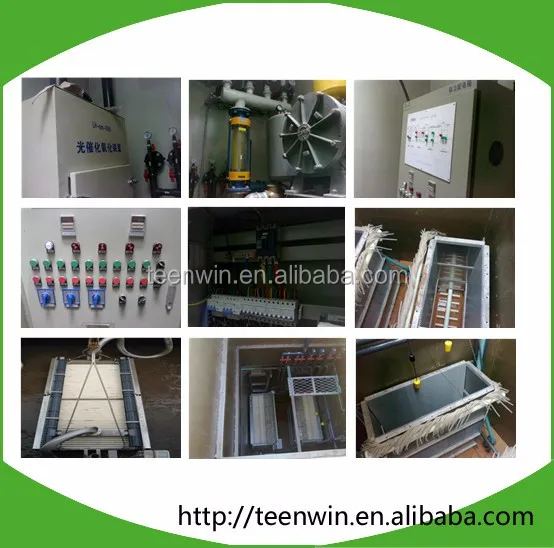

Teenwin membrane bioreactor plant
